型号 Model |
有效容积 Effective Capacity (m3) |
处理能力 Capacity (m3/min) |
叶轮直径 Diameter of Mpeller (mm) |
叶轮转速 Revolution of Impeller (r/min) |
鼓风机风压 Air Pressure of Blower (kpa) |
最大充气量 Max.air Folw (m3/m2.min) |
电机功率(kw) Motor power |
单槽重量 Weight of cell (kg) |
备注 Remarks |
|
搅拌用 For agitating |
刮板用 For scraper |
|||||||||
BS-K2.2 | 2.2 | 0.5-3 | 420 | 260 | ≥15 | 2-3 | 5.5 | 0.75 | 1750 |
需阶梯配置 It should be arranged with Gradient |
BS-K4 | 4 | 0.5-4 | 500 | 212 | ≥15 | 3-6 | 7.5 | 1.1 | 2568 | |
BS-K6 | 6 | 1-6 | 650 | 197 | ≥27 | 4-10 | 18.5 | 1.1 | 3760 | |
BS-K8 | 8 | 1-8 | 650 | 190 | ≥20 | 4-10 | 15 | 1.1 | 4221 | |
BS-K16 | 16 | 2-15 | 750 | 160,170 | ≥27 | 6-15 | 30 | 1.1 | 6540 | |
BS-K24 | 34 | 7-20 | 830 | 154,159 | ≥29 | 8-18 | 37 | 1.1 | 9231 | |
BS-K38 | 38 | 10-30 | 910 | 141 | ≥34 | 10-20 | 45 | 1.1 | 12677 |

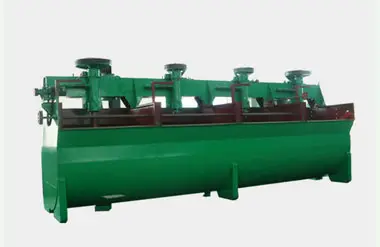

BS—K型浮选机属深槽型、充气型浮选机,叶轮只起搅拌矿浆、循环矿浆和分散空气作用,因而易损件磨损较轻,其功率比其他类型浮选机较省。该机无自吸矿浆能力,作业中间产品返回需用泡沫泵。
